BMC Approved Air Quality Monitoring System

Model No : AQM-9XX

Real-Time Air Quality Monitoring Solution for Construction Sites & Environmental Compliance manufacturer, supplier, and exporter, Mumbai-India.

The BMC Approved Air Quality Monitoring (AQM) System – AQM-9XX is a compact and reliable environmental monitoring solution designed for continuous real-time monitoring of critical air quality and meteorological parameters in accordance with municipal environmental monitoring requirements.

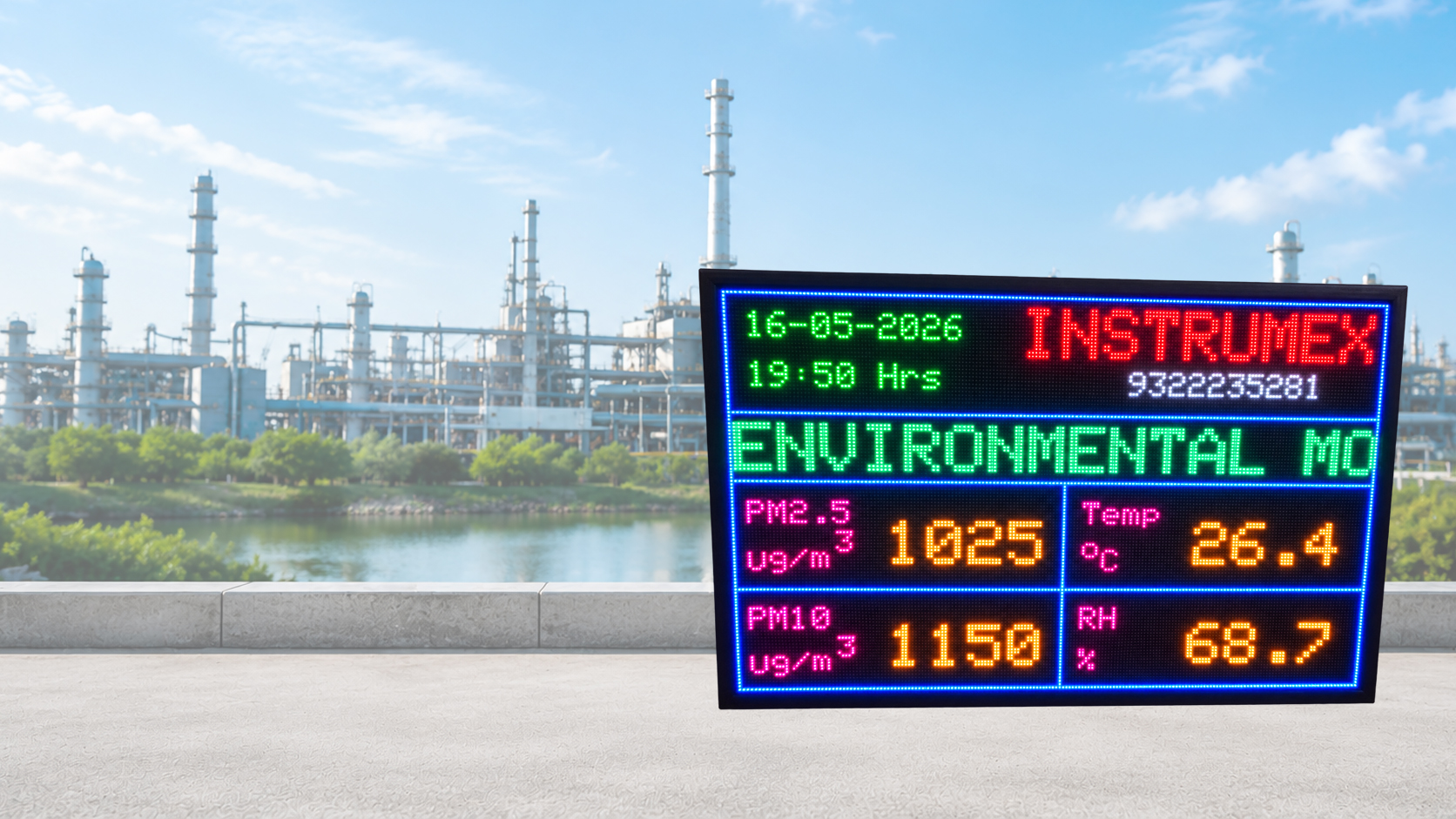

The system consists of a dedicated Outdoor LED Display Unit and an independent Data Logger Unit, ensuring reliable real-time visualization, secure data storage, and long-term performance in outdoor environments. Designed specifically for construction sites, infrastructure projects, demolition activities, and municipal compliance applications, the AQM-9XX provides accurate measurement of particulate matter and weather parameters while enabling continuous environmental monitoring and reporting.

Municipal Corporation & Pollution Control Board Server Connectivity

The AQM System supports server connectivity and data integration with Municipal Corporations and Central & State Pollution Control Boards as per applicable regulatory requirements. We provide complete connectivity support for transmitting real-time air quality monitoring data to the respective authority servers, enabling remote monitoring, centralized data access, environmental compliance, and regulatory reporting.

Our connectivity solution can be configured to meet the technical and communication requirements specified by the respective Municipal Corporation, CPCB, SPCB, and other concerned environmental authorities.

Monitored Parameters

Air Quality Parameters
  • PM₁₀ (Particulate Matter ≤10 µm)
  • PM₂.₅ (Particulate Matter ≤2.5 µm)
Meteorological Parameters
  • Ambient Temperature
  • Relative Humidity

How It Works

The AQM-9XX continuously measures ambient particulate matter concentrations and weather conditions through dedicated sensors. The collected data is processed by the integrated data logger and instantly displayed on the outdoor LED display for public visibility and regulatory compliance.

All monitoring data is automatically stored within the data logger and can be accessed through RS-485 communication and the built-in Wi-Fi hotspot. Historical records are retained for long-term analysis, reporting, and compliance verification.

Key Features

  • Municipal Corporation & Pollution Control Board Server Connectivity: We Provide Server Connectivity And Data Integration With Municipal Corporations And Central/State Pollution Control Boards, Enabling Real-Time Data Transmission, Remote Monitoring, And Environmental Compliance Reporting As Per Applicable Requirements.
  • Real-Time Monitoring: Continuous monitoring and display of PM₁₀, PM₂.₅, Temperature, and Humidity with instant data updates.
  • Outdoor Industrial LED Display: High-brightness LED display designed for outdoor visibility with viewing distance up to 50–100 meters.
  • Separate Display & Data Logger Units: Independent display and data logging architecture ensures reliable operation, flexible installation, and secure data management.
  • Long-Term Data Storage: Built-in data logger with SD card support capable of storing monitoring data for up to 3–4 years depending on logging interval and storage capacity.
  • Wi-Fi Hotspot Connectivity: Integrated hotspot functionality enables local access for configuration, diagnostics, and data retrieval without requiring additional communication infrastructure.
  • RS-485 Communication: Supports Modbus RTU communication over RS-485 for reliable sensor integration and data collection.
  • Historical Data Retrieval: Stored monitoring records can be easily accessed for environmental reporting, audits, and compliance verification.
  • IP65 Weatherproof Design: Designed for outdoor operation with protection against dust, rain, humidity, and harsh environmental conditions.
  • Low Maintenance Operation: Industrial-grade design ensures reliable performance with minimal maintenance requirements.

Technical Specifications

Parameter Specification
Display Type Outdoor Industrial LED Display
Display Parameters PM₁₀, PM₂.₅, Temperature, Humidity
Visibility 50–100 meters
Brightness Auto-adjustable High-Brightness LEDs
Display Format Real-Time Scrolling / Static Display
Character Height 4"–6" (Customizable)
Communication Interface RS-485 / Ethernet
Communication Protocol Modbus RTU over RS-485
Power Supply 230 VAC, 50 Hz
Enclosure Material Powder-Coated MS / Aluminum
Protection Class IP65 Weatherproof
Operating Temperature -10°C to +60°C
Mounting Type Pole Mounted / Wall Mounted
Data Refresh Rate Real-Time (User Configurable)
Data Retention Up to 3–4 Years
Historical Data Retrieval Available
Weather Resistance Yes
Maintenance Low Maintenance Design

Communication Features

  • Construction Site Monitoring
  • Infrastructure Development Projects
  • Demolition Site Monitoring
  • Smart City Projects
  • Municipal Environmental Compliance
  • Urban Air Quality Monitoring
  • Road & Highway Construction Projects
  • Commercial & Residential Development Projects
  • Industrial Environmental Monitoring

Benefits

  • Regulatory Compliance: Helps construction and infrastructure projects comply with BMC environmental monitoring requirements.
  • Public Awareness: Real-time display of air quality parameters enhances transparency and public awareness regarding environmental conditions.
  • Reliable Data Management: Long-term data storage and historical retrieval simplify compliance reporting and environmental audits.
  • Easy Installation: Compact architecture with separate display and data logger units allows flexible deployment in various site conditions.
  • Robust Outdoor Performance: IP65-rated enclosure and industrial-grade components ensure reliable operation in challenging weather conditions.

Why Choose AQM-9XX?

The AQM-9XX combines accurate particulate monitoring, real-time public display, long-term data storage, and reliable communication capabilities into a compact and rugged platform. Designed specifically for BMC-approved environmental monitoring applications, it provides a dependable and cost-effective solution for construction site compliance and ambient air quality monitoring.

Proudly Developed in India

Designed, developed, and manufactured by Instrumex, the AQM-9XX reflects our commitment to innovation, quality, and customer satisfaction. Built to meet the demands of Indian environmental conditions, it delivers reliable performance, comprehensive data management, and dependable service support.
