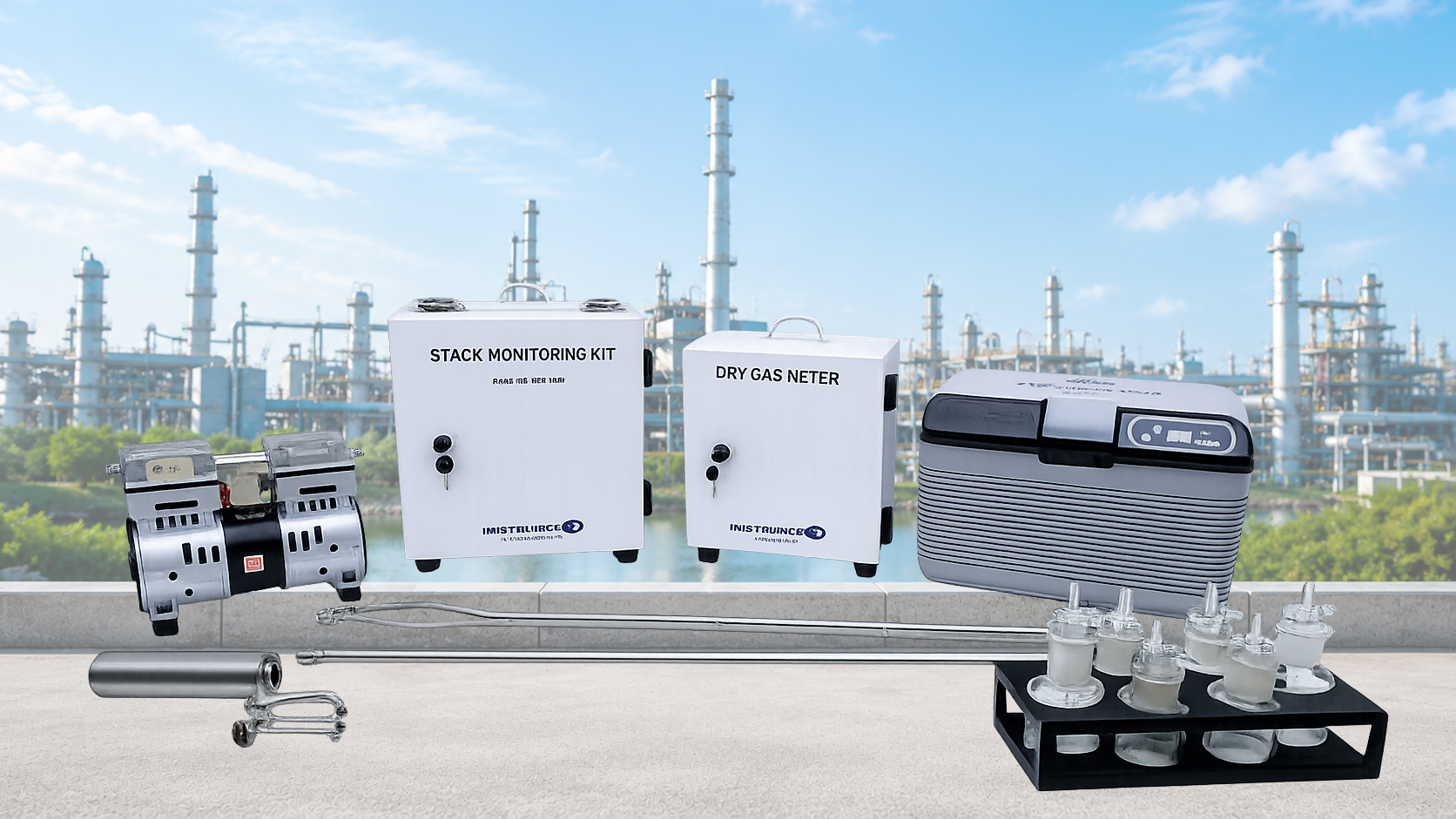

Manual Stack Monitoring Kit
Model No : IPM-114
Portable Isokinetic Stack Emission Sampling System for Particulate and Gaseous Pollutant Monitoring manufacturer, supplier, and exporter, Mumbai-India.
The INSTRUMEX Manual Stack Monitoring Kit (Model: IPM-114) is a portable stack emission sampling system designed for the measurement of particulate matter and gaseous pollutants from industrial stacks, chimneys, boilers, furnaces, and process vents.
The system enables environmental professionals, industries, laboratories, consultants, and regulatory agencies to perform stack emission monitoring by collecting representative samples of particulate matter and gaseous pollutants under controlled sampling conditions.
Designed for field use, the IPM-114 measures stack gas temperature, velocity, pressure, and sampling flow rate while collecting particulate and gaseous pollutant samples for laboratory analysis. Its modular construction, rugged design, and high-capacity vacuum system make it suitable for a wide range of industrial emission monitoring applications.
The system can be used for monitoring pollutants such as particulate matter, Sulphur Dioxide (SO₂), Oxides of Nitrogen (NOₓ), Hydrogen Sulphide (H₂S), Acid Mist, Fluorides, Ammonia, Chlorine, and other pollutants that can be analyzed using standard wet chemical methods.
Applications
- Stack Emission Monitoring
- Boiler Emission Testing
- Thermal Power Plants
- Cement Industries
- Steel & Metallurgical Industries
- Chemical Processing Plants
- Refineries & Petrochemical Industries
- Waste Incineration Facilities
- Environmental Compliance Monitoring
- Third-Party Environmental Audits
- Research & Academic Studies
Parameters Monitored
Stack Parameters
- Stack Gas Velocity
- Stack Gas Temperature
- Volumetric Flow Rate
- Differential Pressure
- Static Pressure
- Sampling Flow Rate
Particulate Monitoring
- Suspended Particulate Matter (SPM)
- Total Particulate Matter (TPM)
Gaseous Pollutants
- Sulphur Dioxide (SO₂)
- Oxides of Nitrogen (NOₓ)
- Hydrogen Sulphide (H₂S)
- Acid Mist (H₂SO₄)
- Fluoride Compounds
- Ammonia (NH₃)
- Chlorine (Cl₂)
- Other Pollutants through Wet Chemical Methods
How It Works
The IPM-114 extracts a representative gas sample from the stack under isokinetic sampling conditions, ensuring that the sampling velocity at the nozzle matches the velocity of the stack gas.
A calibrated S-Type Pitot Tube measures stack gas velocity while a thermocouple continuously measures stack temperature. The vacuum pump draws the sample through the sampling train where particulate matter is collected on a filter media and gaseous pollutants are absorbed into reagent-filled impingers.
The collected particulate sample is analyzed gravimetrically, while absorbed gases are analyzed using standard laboratory methods. By maintaining proper isokinetic conditions throughout the sampling period, the system ensures accurate and representative emission measurements.
