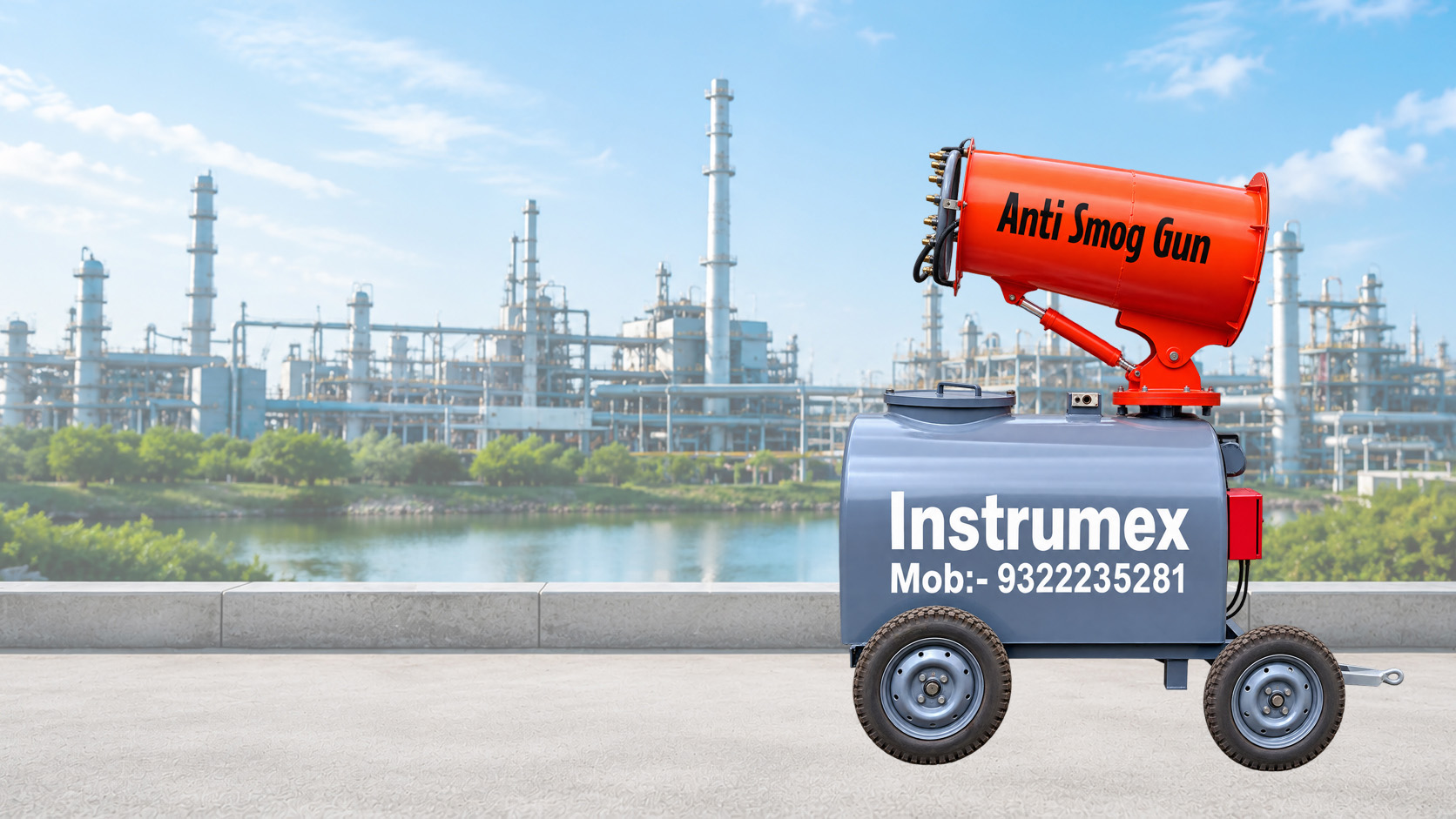

Anti Smog Gun – Dust Suppression System
Advanced Dust Suppression & Air Pollution Control System
The Instrumex Anti Smog Gun is a high-performance dust suppression system designed to control airborne dust and particulate matter generated at construction sites, demolition sites, mining areas, road projects, stone crushers, material handling areas, and other industrial applications.
The machine uses a powerful high-speed fan and high-pressure water spray system to generate a fine mist that helps suppress and settle airborne dust over a wide area. It is available in different spraying ranges and both automatic and manual operating configurations to suit different site requirements.
Key Features
- Water Throwing Range: Available in 30M and 50M models
- Operation: Available in Automatic and Manual models
- Mounting Type: Heavy-Duty Trolley Mounted
- Water Tank Capacity: 1000 Litres
- Fan Motor: 5 HP Havells, 2800 RPM
- Pump: High-Pressure Ceramic Piston Pump
- Nozzles: 16 Brass Nozzles
- Fan Blades: 6 Nos.
- Rotation: Automatic / Manual, as per model
- Control Panel: Schneider / Chint
- Power Supply: 440V, 3 Phase, 50 Hz
- Tyres: 4 Nos. New Heavy-Duty Tyres
- Approx. Weight: 650 kg
- Water Tank Sheet Thickness: 2 mm
- Tank Gauge/Sheet: 2 mm
- Approx. Height: 8 ft
- Approx. Width: 4.5–5 ft
- Approx. Length: 7.5–8 ft
Applications
- Construction & infrastructure projects
- Demolition sites
- Road construction and excavation areas
- Mining and quarrying
- Stone crushers
- Cement and aggregate handling areas
- Coal and mineral stockyards
- Material loading/unloading areas
- Industrial premises
- Dust-prone open areas
Efficient Dust Suppression
The Instrumex Anti Smog Gun is available in Automatic and Manual configurations.
The Anti Smog Gun uses a high-pressure water spray and powerful fan system to produce fine water mist and distribute it over a large area. The mist helps capture and settle airborne dust particles, making it suitable for controlling dust generated during construction, demolition, mining, material handling and other industrial activities.
Automatic & Manual Models
- Automatic Model: Equipped with an automatic rotation mechanism for wider and more consistent area coverage with reduced manual intervention.
- Manual Model: Allows the operator to manually position and adjust the spraying direction according to site requirements.
30M & 50M Models
The Anti Smog Gun is available in different spraying ranges to meet varying dust suppression requirements:
- 30 Meter Model: Suitable for medium-range dust suppression applications.
- 50 Meter Model: Suitable for long-range and large-area dust suppression applications.
Heavy-Duty Construction
The unit is designed with a 1000-litre water tank, heavy-duty trolley, 4 tyres, 5 HP motor and high-pressure pumping system, making it suitable for demanding outdoor and industrial applications.
Power & Installation Requirement
The machine requires a 440V, 3-Phase, 50 Hz electrical supply. A suitable electrical supply is essential for proper operation of the machine.
Important: Proper electrical earthing must be provided at the installation site. The machine will not be connected or commissioned if proper earthing and the required electrical supply are not available.
Why Choose Instrumex Anti Smog Gun?
- Available in 30M and 50M spraying ranges
- Available in Automatic and Manual models
- Long-range dust suppression
- Heavy-duty trolley-mounted design
- 1000-litre integrated water tank
- 5 HP high-speed fan motor
- 16-brass-nozzle misting system
- High-pressure ceramic piston pump
- Suitable for construction and industrial dust control
- Easy movement and positioning with heavy-duty tyres
- Designed for large-area dust suppression
Instrumex Anti Smog Gun is an effective solution for controlling airborne dust and maintaining cleaner and safer working environments across construction, industrial, mining and infrastructure sites.
Anti Smog Gun – Available Combinations
| Model | Spraying Range | Operation Type |
|---|---|---|
| 30M Automatic Anti Smog Gun | 28–30 Meters Approx. | Automatic 360° Rotation |
| 30M Manual Anti Smog Gun | 28–30 Meters Approx. | Manual Rotation |
| 50M Automatic Anti Smog Gun | 48–50 Meters Approx. | Automatic 360° Rotation |
| 50M Manual Anti Smog Gun | 48–50 Meters Approx. | Manual Rotation |
4 available combinations
- 30M + Automatic
- 30M + Manual
- 50M + Automatic
- 50M + Manual
