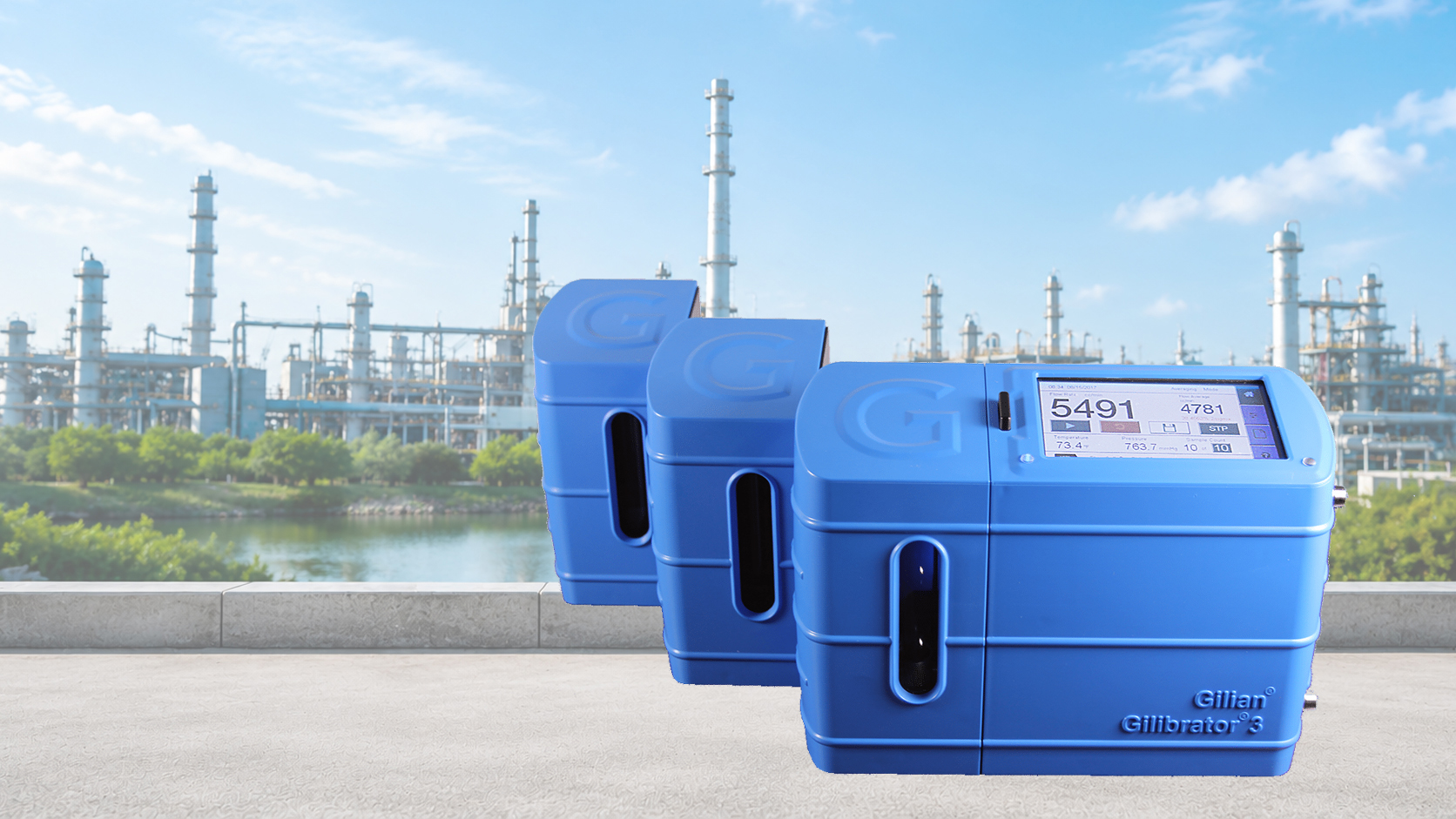

Gilian Gilibrator 3 Calibrator
Primary Dry Cell Calibrator — convenient and accurate, with stable back pressure (StablFlow™).
The Gilibrator 3 delivers maximum convenience, accuracy, and data integrity for calibrations in the field, the lab, or wherever you go. Designed for mobility with an advanced rechargeable LiFePO4 battery, it has a modular design for quick changes of liquid-free, dry flow cells, addressing calibrations from 5 cc/min to 30 LPM. At its core is StablFlow "pulse-free valve" technology, providing constant low back pressure to the device being calibrated for high calibration accuracy (within 1% of reading).
Key Features
- StablFlow provides constant low back pressure; patent-pending pulse-free valve technology maintains calibration integrity
- Touch screen color display with auto-adjust for visibility in all lighting, even direct sunlight
- Interchangeable Low (5–450 cc/min), Standard (50–5,000 cc/min), and High (1–30 LPM) flow cells on a common base
- Internal record storage (100 time-stamped events) plus SD card slot for bitmap/.csv export
- SmartCal capable with GilAir Plus for hands-free adjustments
Specifications
| Parameter | Specification |
|---|---|
| Flow Ranges | Low 5–450 cc/min; Standard 50–5,000 cc/min; High 1–30 LPM |
| Volumetric Accuracy | 1% of reading (or 0.003 LPM, whichever greater) |
| Battery | Lithium (LiFePO4); 3 hrs max flow / 8 hrs continuous use; charges in 3–7 hrs |
| Dimensions / Weight | 6.6″ x 9.2″ x 3.2″; Base 2.8 lbs, cells 0.8–1 lb |
| Data Port | RS-232 (pump interface), USB (data) |
| Warranty | 24 months (1 year battery) |
| Certifications | EN 61010-1, CE, RoHS, EMC compliant |
Kits & Ordering
Available as Base Packs (no case) or Kits (with hard shell case) in Low, Standard, or High flow, plus two-range and Deluxe (all three) combinations. Individual flow cells, hard shell case, and base unit also sold separately.
