Model No : GilAir Plus
The most Advance Air Sampling Pump in the world!
• Easily Monitor Activity with Your Mobile Device!
Quickly set up a mobile device for remote (via Bluetooth) internal motion monitoring, logging that provides improved sample integrity, in-process sample auditing, snapshots, and automatic reports of current conditions. Complete instructions are included with the GilAir® Plus.
• QuadMode Air Sampling Technology
Wide, dynamic flow range provides high-flow constant pressure and constant flow, and low-flow constant pressure and constant flow without external adapters.
• SmartCal Automatic Calibration
The SmartCal feature uses the dock as a communication link between appropriate calibration devices and the GilAir® Plus. It automates calibration and records pre and post sample calibrations in the pump's datalog.
• Temperature & Pressure Compensation
The GilAir® Plus pump operates in selectable ambient or standard mode correcting for temperature and barometric pressure when equipped with STP option and provides automatic flow correction option for barometric pressure changes.
• Quad Mode Air Sampling Technology
• Smartcal Calibration
• Motion Detection & Bluetooth
• Temperature & Pressure Compensation
• Superior Design & Comfort
• Real-Time Clock With Data-Logging
| Flow Rate | Constant flow 20 - 5,000 cc/min. without external adaptors Constant pressure 1 - 5,000 cc/min without external adaptors |
||||||||||||||||
| Barometric Pressure | ± 5% of calibrated flow from 460 to 1060 mmHg (STP Model Only) in high flow ranges | ||||||||||||||||
| Battery Life | Estimated 300-500 charge/Discharge cycles depending on use.
|
||||||||||||||||
| Dimensions | 4.3 x 2.4 x 2.4 inches 10.9 x 6.1 x 6.1 centimeters |
||||||||||||||||
| Certifications | US/Canada NRTL (FM) Class I, Div 1 Groups A, B, C, D, E, F, and G; Class II, Div 1 Zone 0; Class III, T4 ATEX/IECEx II 1 G Ex ia IIC T4 |
Model No : Gilian 5000
The Gilian 5000 is a high-performing personal air sampling pump leading the industry in back-pressure performance, reliability and ease-of-use. The pump offer flow rates up to 5000 cc/min, and thanks to several advanced features, the pump overcome the main causes of sampling errors, saving you time and money.
• Nimh Memory-Free Battery
• Programmable Functionality
• Highest Back Pressure Capacity
• Intuitive Operation With Lock – Out Feature
• 30-Day Calibration
• Live Flow Display
• Intrinsically Safe Certified
| Flow Rate | 20 – 5000 cc/min (Total Range) 800 – 5000 cc/min (High Flow Range) 20 – 800 cc/min (Low Flow Range with low flow adapter) |
||||||||||||||||
| Battery Life | Estimated 300-500 charge/Discharge cycles depending on use.
|
||||||||||||||||
| Dimensions | 3.2W x 5.4H x 2.3D inches 8.2W x 13.7H x 5.8D cm |
||||||||||||||||
| Certifications | US/Canada NRTL (FM) .... Class I, Div 1 Groups A, B, C, D; ; Class II, Div 1, Groups E, F & G; Class III, T4 ATEX II 1 G Ex ia IIC T4 |

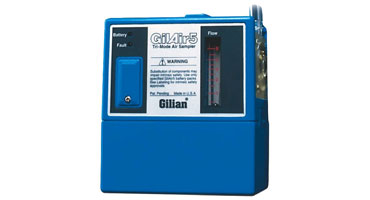

Model No : GilAir 5
GilAir-5 Air Sampling Systems offer both high and low flow sampling capabilities. These capabilities range from 1cc to 3,000cc and 1cc to 5,000cc respectively. GilAir-5 samplers consist of an electronic control system, a pneumatic system, and a rechargeable battery pack. GilAir-5 sampler is equipped with a basic control board, which contains the flow control circuitry. The board also contains the On/Off switch, flow control potentiometer, flow fault indicator, and battery charge indicator.
• External Filter Housing
• Flow Fault And Test Indicators
• Basic, Clock & Program Models
• Optional Low Flow Modules
| Flow Rate | 1- 5000 cc/min (Total), 850 - 5000 cc/min (High Flow); 5-500 cc/min (Constant Low Flow); 1-750 cc/min (Constant Pressure) |
||||||||||||||||
| Battery Life | Estimated 300-500 charge/Discharge cycles depending on use.
|
||||||||||||||||
| Dimensions | 3.2W x 5.4H x 2.3D inches 8.2W x 13.7H x 5.8D cm |
||||||||||||||||
| Certifications | UL - Class I, Div 1, Groups A, B, C, D; T3C CENELEC - EEx ia IIC T4 |
Model No : Gilian BDX-II
Gilian BDX-II is designed for lead and asbestos monitoring, its compact, lightweight design is rugged and completely reliable, making it ideal for field applications. The BDX-II accurately monitors for asbestos using the NIOSH Method 7400 or the OSHA reference sampling method. It will also monitor for lead using NIOSH Methods 7082, 7105 or 7300.
• 500-3000 Cc/Min
• Anti-Tamper Control Covers
• Sealed Internal Components
• Rechargeable Battery Pack
• Easy Calibration
• Ul Approved
| Flow Rate | 500 – 3000 cc/min | ||||||||||||||||
| Battery Life | Estimated 300-500 charge/Discharge cycles depending on use.
|
||||||||||||||||
| Dimensions | 3.6" (W) x 3.9" (H) x 2.0" (D) 90 mm (W) x 100 mm (H) x 51 mm (D) |
||||||||||||||||
| Certifications | UL Approved |
