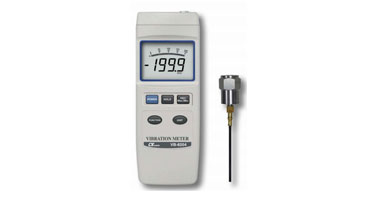

Handheld Vibration Meter
Model No : VB8203
VB—8203 is basically a professional vibration meter supply with vibration sensor.
It comes with optional data acquisition software and separate vibration probe.
Model No : VB8201HA
VB-8201HA is used in Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment and looseness of the structure will cause the vibration level increase, it is asure sign that the maintenance is needed.
• Professional vibration meter supply with vibration sensor & magnetic base, full set.
• Auto shut off saves battery life.
• Built-in low battery indicator.
• Heavy duty & compact housing case
• Memory function to record maximum and minimum reading with call.
• Super large LCD display.
• RMS & Peak measurement.
• Optional data acquisition software.
• Separate vibration probe.
Frequency Range | 10Hz – 1KHz |
Accelerometers | |
Display | 61 mm x 34 mm super large LCD display and 15 mm (0.6")digit size. |
Level Range | Velocity : 200mm/s:0.5 to 199.9mm/s Acceleration : 200m/s2 : 0.5 to 199.9m/s2 |
Memory | Maximum & Minimum Value. |
Input/ Power Required | Alkaline or heavy duty type DC 9V battery,006P, MN 1604(PP3) |
Output | |
Dimension | Meter – 185 x 78 x 38mm (7.3 x 3.1 x 1.5 inch) Vibration sensor probe – Round 16mm dia x 29mm. |
Model No : VB8203
VB—8203 is basically a professional vibration meter supply with vibration sensor.
It comes with optional data acquisition software and separate vibration probe.
• Professional vibration meter supply with vibration sensor & magnetic base, full set.
• Auto shut off saves battery life.
• Built-in low battery indicator.
• Heavy duty & compact housing case
• Memory function to record maximum and minimum reading with call.
• Super large LCD display.
• RMS & Peak measurement.
• Optional data acquisition software.
• Separate vibration probe.
Frequency Range | 10Hz – 1KHz |
Accelerometers | |
Display | 52 mm x 38 mm super large LCD display and 16 mm (0.63")digit size. With bar graph indicator. |
Level Range | Velocity : 200mm/s:0.5 to 199.9mm/s Acceleration : 200m/s2 : 0.5 to 199.9m/s2 Displacement : 1.999mm |
Memory | Maximum & Minimum Value. |
Input/ Power Required | Alkaline or heavy duty type DC 9V battery,006P, MN 1604(PP3) |
Output | RS232 serial output , isolate. |
Dimension | Meter – 200 x 68 x 30mm (7.9 x 2.7 x 1.2 inch) Vibration sensor probe – Round 16mm dia x 37mm. Cable length : 2 meter. |
Model No : VB8205
VB-8205 is used in Measure Accelerator, Velocity , Displacement with RPM & Frequency.
It has the optional RS232 communication having advanced software program for all windows. It also comes with optional headphones for use as a electronic stethoscope.
• Auto Power OFF.
• Max. Hold.
• Measure Accelerator, Velocity , Displacement with RPM & Frequency.
• Meter and Imperial measurement.
• Low battery indicator.
• AC Output socket for headphones and recording.
• Optional headphones for use as electronic stethoscope.
Frequency Range | 1Hz – 20KHz |
Accelerometers | |
Display | 4 digits , 18mm LCD display |
Level Range | Velocity : 0.01 ~ 40cm/s True RMS Acceleration : 0.1 ~ 200m/s2 at mode1 & 0.3 ~ 200 ft/s2 at mode2 Displacement : 0.001 ~ 4mm |
Memory | Maximum & Minimum Value. |
Input/ Power Required | Alkaline or heavy duty type DC 9V battery,006P, MN 1604(PP3) |
Output | RS232 serial output , isolate. |
Dimension | Meter – 124 x 62 x 30mm |
