Real Time Dust Monitor

Instrumex | Posted On: 12/2/2021
Dust Monitoring Equipment manufacturer, supplier, and exporter, Mumbai-India.

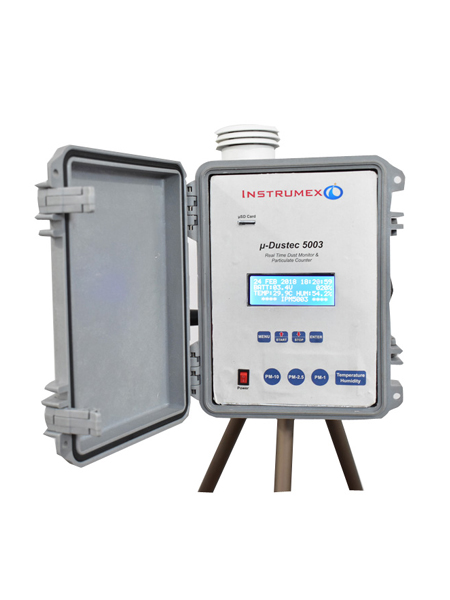

Model No : 500X

The MicroDustec 500X is the latest addition in the list of Environmental Monitoring Innovations by Instrumex. This is the most comprehensive dust monitoring solution that can measure dust particles as low as 0.3μ upto 10μ. Housed in an IP67 protected case, this unit is capable for outdoor continuous monitoring. Extremely portable & Light weight unit ensures maximum mobility. Available in 3 different models 5003, 5006 & 5009

Technical Specifications

Measurement Principle Optical Light Scattering using Laser Diode
Dust Concentration Measuring Range 0.01 µg/m3 to 1,500 milligram/m3
Size Channels 5003 – 3 Channels (1.0µm, 2.5µm, 10µm)
5006 – 6 Channels (0.3µm, 0.5µm, 1µm, 2.5µm, 5µm, 10µm)
5008 – 8 Channels (0.3µm, 0.5µm, 0.7µm, 1µm, 2.5µm, 4µm, 5µm, 10µm)
Particle Size Range 0.3µ to 10µ
Particle Count Rate 10,000 Particles/Second
Temperature Range -20°C – 50°C
Humidity Range 0 – 95%
Total Flow Rate 1.2 LPM
Display 20 x 4 LCD Display
Data Logging Inbuilt MicroSD Card to store Data
Communication USB Port (Option for Ethernet / RS232/ RS485)
GPRS Modem for sending Real Time data online.
Calibration Particle Counter as ISO 21501-4 2007
Temperature & Humidity as per ISO 17025
Power 230V, 50Hz AC Adapter with country Specific plug
Battery Rechargeable Li-Ion with 8 hours Run time
Enclosure IP67 Protected High Impact Plastic Suitable for outdoor application
Weight 2.2lbs (1kg.)
Dimensions L x W x H = (24 x 20 x 11) cms
